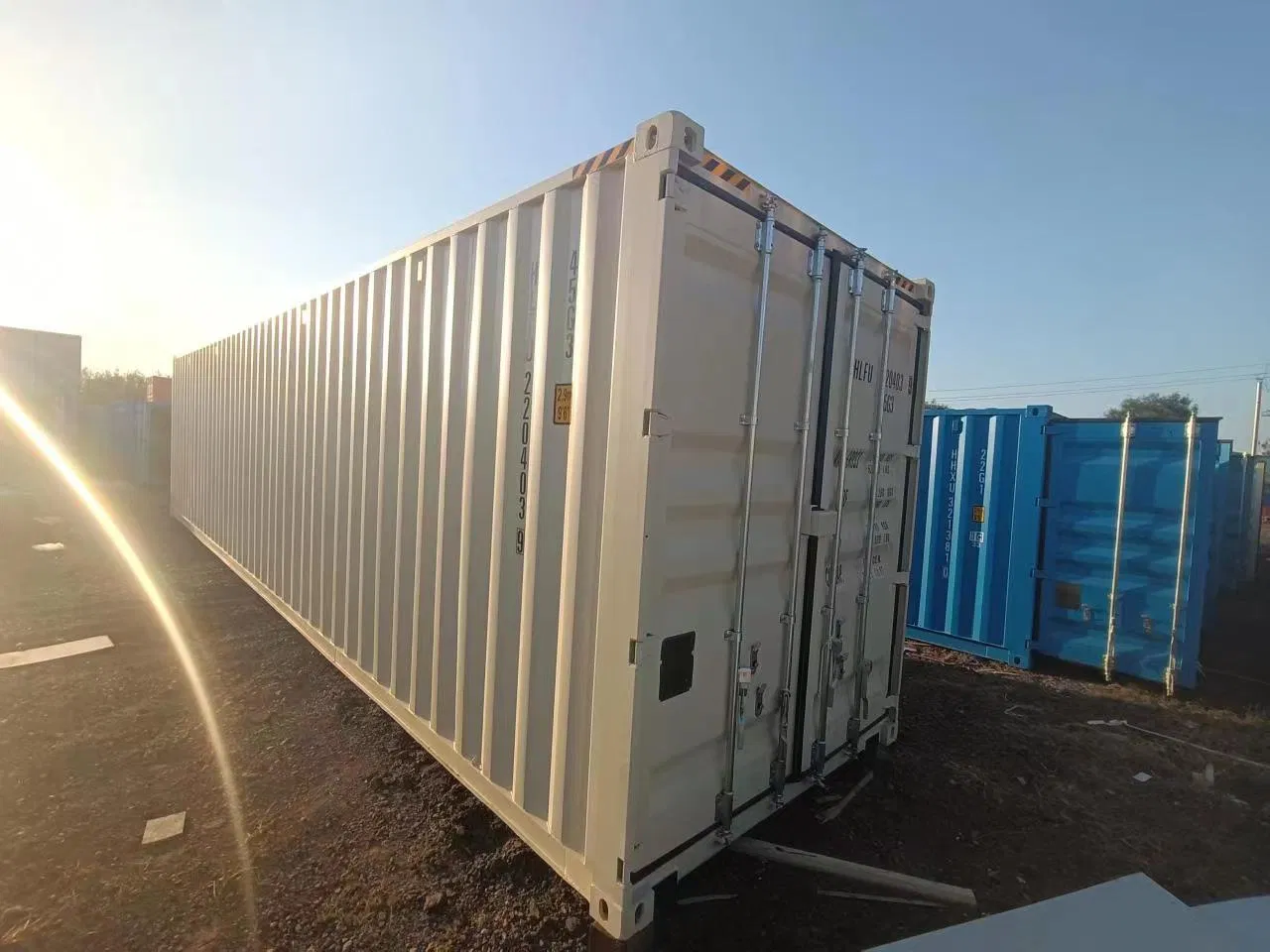

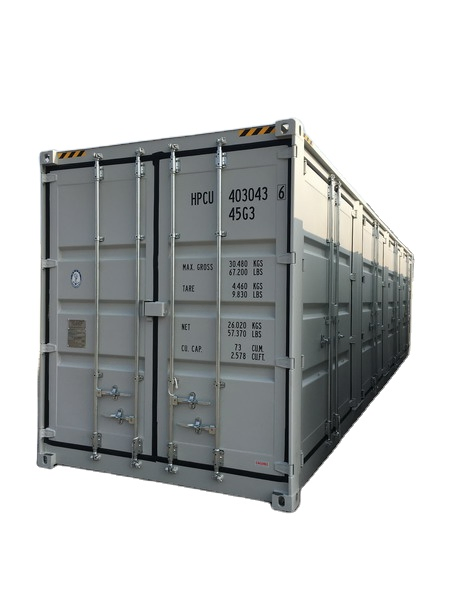

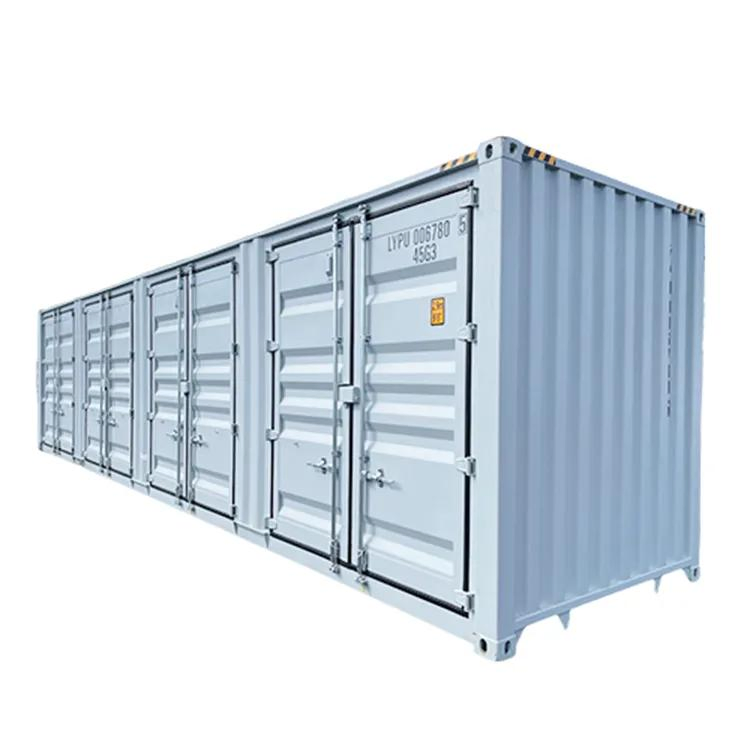

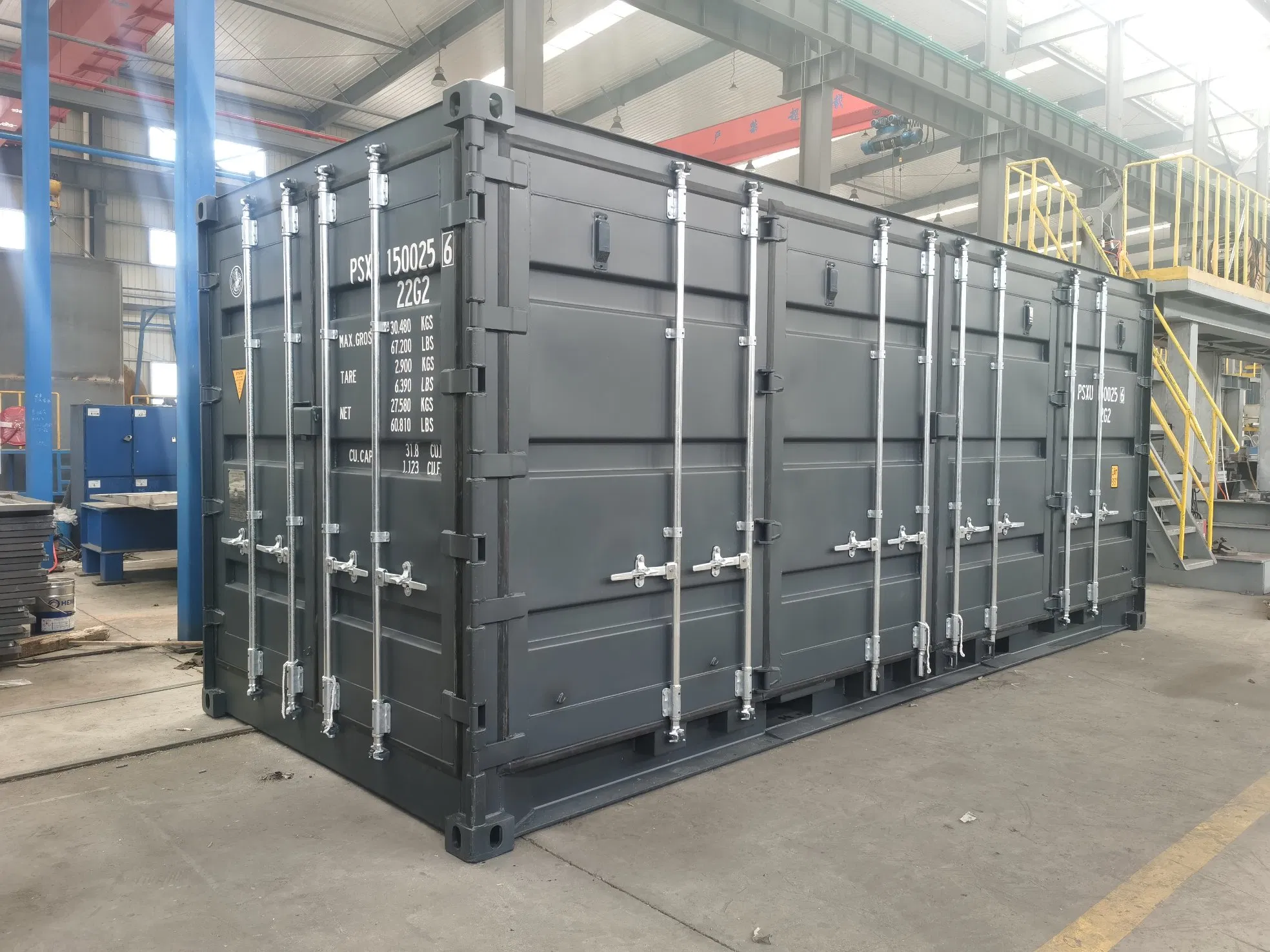

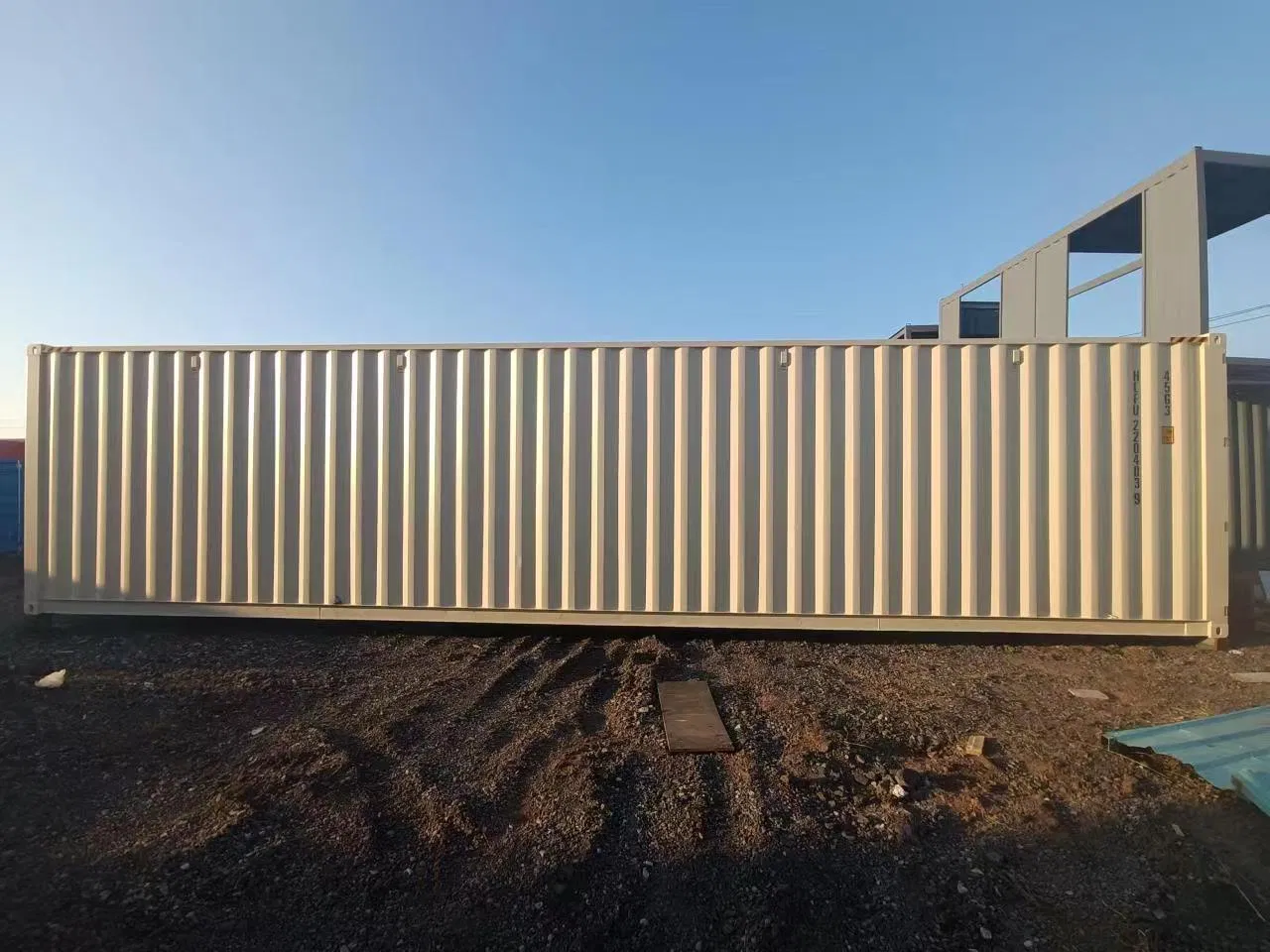

Open side containers are very similar to regular, general purpose shipping containers, the only difference being that the doors can open completely on the side too. This feature provides much wider room and access, which makes loading and unloading materials easy. Open side shipping containers generally come in 20' and 40', and they provide adequate room for extra-large items that can't fit through the regular doors.
Containers shall comply with following in their latest editions:
| ISO/TC-104 | Classification / Terminology |
|---|---|
| 668 | Series 1 freight containers-Classification, external dimensions and ratings |
| 6346 | Coding, identification and marking for freight containers |
| 1161 | Specification of corner fittings for series 1 freight containers |
| 1496/1 | Part 1 : General cargo containers for general purposes |
| 830 | Freight containers-Terminology |
| Dimension Type | External Dimensions | Internal Dimensions | |
|---|---|---|---|
| Length | 12,192 mm | 12,025 mm | |
| Width | 2,438 mm | 2,283 mm | |
| Height | 2,896 mm | 2,448 mm | |
| Rating Description | Kilograms (KGS) | Pounds (LBS) |
|---|---|---|
| Maximum Gross Weight | 24,000 kg | 52,910 lbs |
| Tare Weight | 4,260 kg | 9,390 lbs |
| Maximum Payload | 19,740 kg | 43,520 lbs |
| Stacking Test Load | 97,200 kg | 214,290 lbs |
| Floor Strength | 7,260 kg | 16,000 lbs |
